INSTALLATION:

The Light Panel is ready to be used out of the box. Positioning of Light Plate, Wired Remote and Front Headlight may vary according to the type of device.

Rear Panel:

·        Any hanging method can be used.

·        The three holes at top were design for easier installation. An example shown in Figure 1.

 Figure 1

Figure 1


Front Headlight:

·        Plug the cable into the Light Plate Box.

·        Bring cable with the front headlight to the front of the chair.

·        Be aware of cable placement not to disturb user pinch cable.

·        Find a fix point under the seat. Be sure that this spot is out of the way of the user and which doesn’t interrupt the functions of the chair.

·        Screw the head light.

Remote:

·        Plug the cable into the Light Plate Box.

·        Bring cable with the remote to the front of the chair.

·        Remote can be place next to the joystick of the wheelchair for easier access.

Battery Replacement:

·        Unscrew the 4 screws of the box (Figure 2) and remove the lid.

 Figure 2

Figure 2

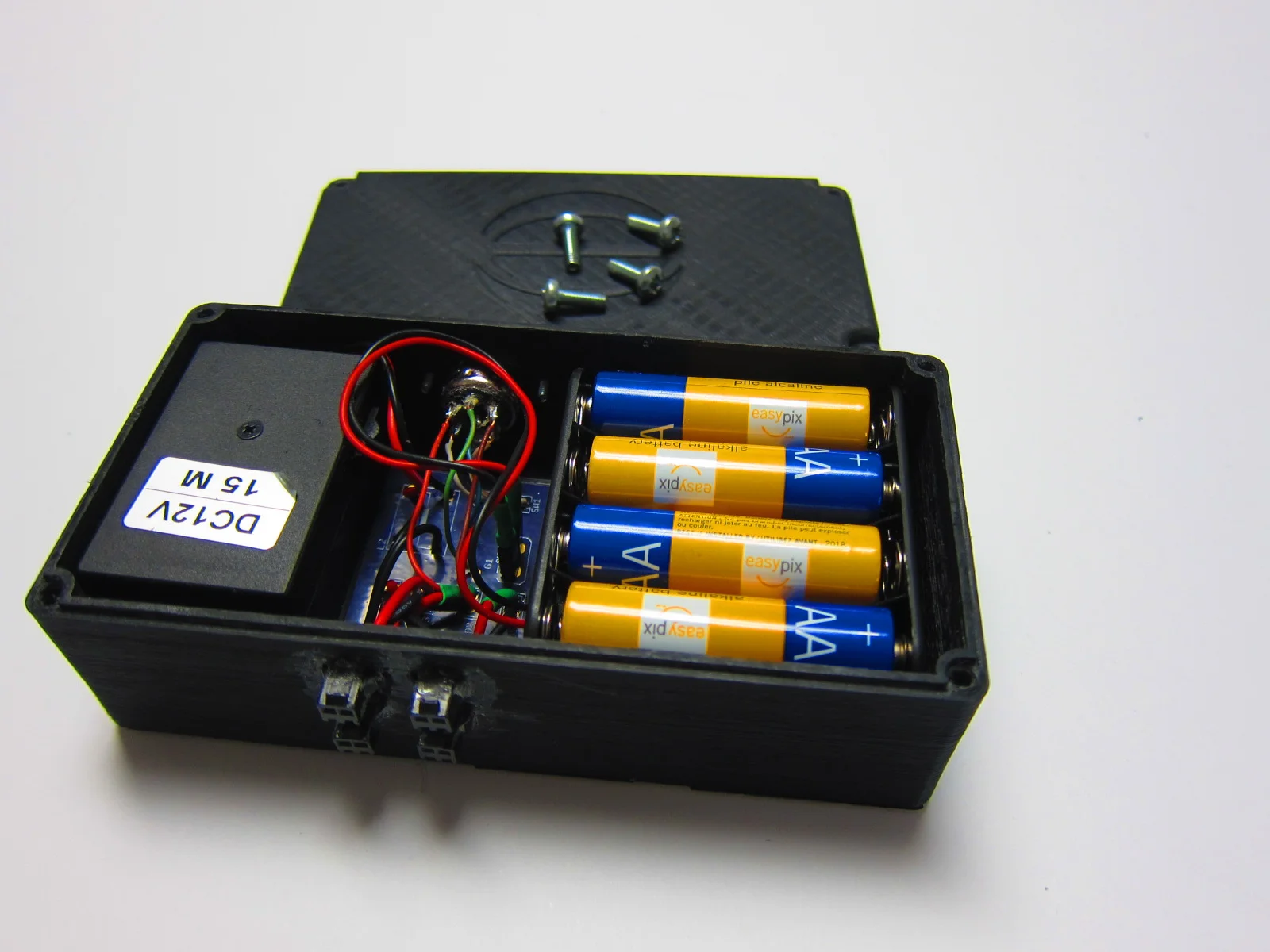

·        Take the battery pack out of the box and replace the batteries (Figure 3).

 Figure3

Figure3

The location of the Light Plate components may vary depending of the type of device.

It is best to consult an Occupational Therapist for optimal placement based on client needs.

FEATURES:

·        Front and rear lighting

·        Simple functions (ON/OFF, RIGHT/LEFT/ALL)

·        Rear Wide panel design for maximum visibility

·        Front Bright-LED Headlight

·        Easy Assembly

Thank you for purchasing the Light Panel and supporting Eightfold Technologies, maker of accessible devices. The Light Panel was created as alternative lighting system on wheelchairs, scooters and other mobile devices.
